Version 0.7 of the MazamaSpatialUtils is now available on CRAN and includes an expanded suite of spatial datasets with even greater cleanup and harmonization than in previous versions. If your work involves environmental monitoring of any kind, this package may be of use. Here is the description:
A suite of conversion functions to create internally standardized spatial polygons dataframes. Utility functions use these data sets to return values such as country, state, timezone, watershed, etc. associated with a set of longitude/latitude pairs. (They also make cool maps.)
In this post we discuss the reasons for creating this package and describe its main features.
At Mazama Science we often work with data that is geo-located:
- biological and chemical samples from streams
- seismic sensor data
- pollution monitoring data
- output from gridded atmospheric models
- forest management and geomorphology data
- national and state demographic and economic data
When working with geo-located environmental time series data, one of the important tasks is supplementing the ‘spatial metadata’ associated with each location. Data from monitoring devices will invariably contain a longitude, latitude and device identifier but sometimes not much else. Additional spatial metadata can allow us to ask more detailed, more interesting questions of our collection of time series. To understand diurnal patterns we need the local timezone at each location. To create county-wide averages, we must know the state and county. To pursue environmental justice issues, we may need census tract information.
The long term goal of the MazamaSpatialUtils package is to make it easier for us to work with GIS shapefile and geodatabase data we discover on the web as we create a library of interesting spatial datasets for our work in R. The package addresses the following specific issues:
- creating a scalable system for working with spatial data
- creating simplified versions of large spatial datasets
- cleaning polygon topologies
- standardizing identifiers in spatial data
- quickly finding spatial information based on a set of locations
Creating a scalable system

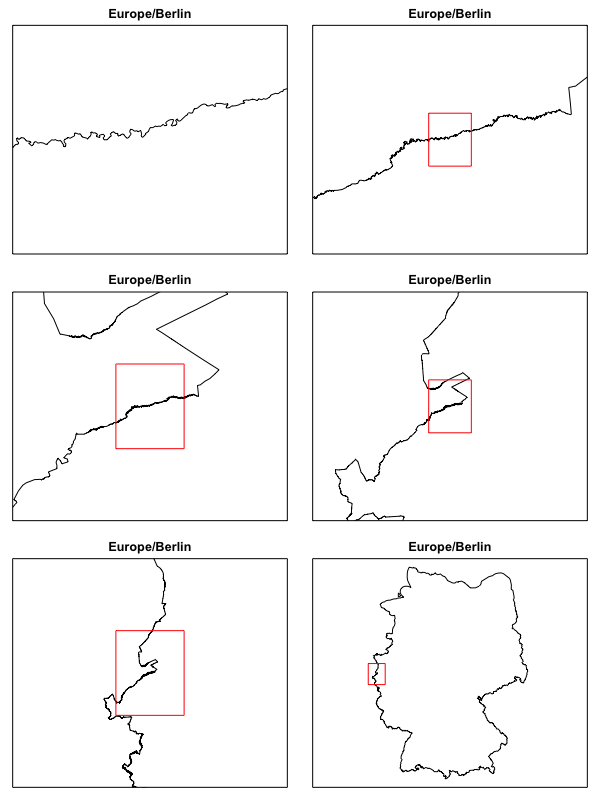

Shapefiles with high resolution features are by nature quite large. Working with the World Timezones dataset we see that the largest single timezone polygon, ‘Europe/Berlin’, takes up 2.47 Mb of RAM because of the highly detailed, every-curve-in-the-river border delineation between Germany and her neighbors.
Spatial datasets can be large and their conversion from shapefile to SpatialPolygonsDataFrame can be time consuming. In addition, there is little uniformity to the dataframe data found in these datasets. The MazamaSpatialUtils package addresses these issues in multiple ways:
- It provides a package state variable called
SpatialDataDirwhich is used internally as the location for all spatial datasets.
- It defines a systematic process for converting spatial data into SpatialPolygonsDataFrames objects with standardized data columns.
- A suite of useful spatial data has been pre-processed with topology correction to result in full resolution and multiple, increasingly simplified versions of each dataset.
Spatial data directory
Users will want to maintain a directory where their .rda versions of spatial data reside. The package provides a
setSpatialDataDir() function which sets a package state variable storing the location. Internally,
getSpatialDataDir() is used whenever data need to be accessed. (Hat tip to Hadley Wickham’s description of Environments and package state.)
The package comes with several
convert~() functions that download, convert, standardize and clean spatial datasets available on the web. Version 0.7 of the package has 21 such scripts that walk through the same basic steps with minor differences depending on the needs of the source data. With these as examples, users should be able to create their own
convert~() functions to process other spatial data. Once converted and normalized, each dataset will benefit from other package utility functions that depend on the consistent availability and naming of certain columns in the
@data slot of each SpatialPolygonsDataFrame.
Cleaned and Simplified files
Part of the process of data conversion involves using the cleangeo package to fix any topologies that are found to be invalid. In our experience, this is especially important if you end up working with the data in the sf or raster packages.
Simplified datasets are important because the dramatically speed up both spatial searches and creation of plots when fast is more important than hyper-accurate. The conversion of the WorldTimezone dataset used above generates a .rda file at full resolution as well as additional versions with 5%, 2% and 1% as many vertices. In the plot above, the 5% version was used to create the the last three plots where high resolution squiggles would never be seen. File sizes for the WorldTimezone .rda files are 67 M, 3.4 M, 1.4 M and 717 K respectively.
The great thing about working with spatial data stored as a shapefile or geodatabase is that these are the defacto standard formats for spatial data. We LOVE standards! Many shapefiles, but not all, also use the ISO 3166-1 alpha-2 character encoding for identifying countries. However, there seems to be no agreement at all about what to call this encoding. We have seen ‘ISO’, ‘ISO2’, ‘country’, ‘CC’ and many more. The ISOcodes package calls this column of identifiers ‘Alpha_2’ which is not particularly descriptive outside the context of ISO codes. From here on out, we will call this column the
Of course there are many spatial datasets that do not include a column with the countryCode. Sometimes it is because they use FIPS or ISO 3166-1 alpha-3 or some (non-standardized) version of the plain English name. Other times it is because the data are part of a national dataset and the country is assumed.
Wouldn’t it be nice if every spatial dataset you worked with was guaranteed to have a column named
countryCode with the ISO 3166-1 alpha-2 encoding? We certainly think so!
The heart of spatial data standardization in this package is the conversion of various spatial datasets into SpatialPolygonsDataFrames files with guaranteed and uniformly named identifiers. The package internal standards are very simple:
1) Every spatial dataset must contain the following data columns:
polygonID– unique identifier for each polygon
countryCode– country at centroid of polygon (ISO 3166-1 alpha-2)
2) Spatial datasets with timezone data must contain the following column:
timezone– Olson timezone
3) Spatial datasets at scales smaller than the nation-state should contain the following column:
stateCode– ‘state’ at centroid of polygon (ISO 3166-2 alpha-2)
If other columns contain these data, those columns must be renamed or duplicated with the internally standardized name. This simple level of consistency makes it possible to generate maps for any data that is ISO encoded. It also makes it possible to create functions that return the country, state or timezone associated with a set of locations.
Searching for ‘spatial metadata’
The MazamaSpatialUtils package began as an attempt to create an off-line answer the following question: “How can we determine the timezones associated with a set of locations?”
We arrived at that question because we often work with pollution monitoring data collected by sensors around the United States. Data are collected hourly and aggregated into a single multi-day dataset with a shared UTC time axis. So far so good. Not surprisingly, pollution levels show a strong diurnal signal so it is useful do identify measurements as being either during the daytime or nighttime. Luckily, the maptools package has a suite of ‘sun-methods’ for calculating the local sunrise and sunset if you provide a longitude, latitude and POSIXct object with the proper timezone.
Determining the timezone associated with a location is an inherently spatial question and can be addressed with a point-in-polygon query as enabled by the sp package. Once we enabled this functionality with a timezone dataset we realized that we could extract more spatial metadata for our monitoring stations from other spatial datasets: country, state, watershed, legislative district, etc. etc.
The package comes with several ‘get’ functions that rely on the consistency of datasets to provide a uniform interface. Current functionality includes the following functions that are all called in the same way. Any ~ below means there are two versions of this function, one each to return the Code or Name:
getCountry~(longitude, latitude, ...)– returns names, ISO codes and other country-level data
getState~(longitude, latitude, ...)– returns names, ISO codes and other state-level data
getUSCounty(longitude, latitude, ...)– returns names and other county-level data
getTimezone(longitude, latitude, ...)– returns Olson timezones and other data
getHUC~(longitude, latitude, ...)– returns USGS Hydrologic Unit Codes and other data
getSpatialData(longitude, latitude, ...)– returns all data
getVariable(longitude, latitude, ...)– returns a single variable
Here is an example demonstrating a search for Olson timezone identifiers:
library(MazamaSpatialUtils) # Vector of lons and lats lons <- seq(-120, -80, 2) lats <- seq(20, 60, 2) # Get Olson timezone names timezones <- getTimezone(lons, lats) print(timezones)  NA NA NA  NA NA "America/Hermosillo"  "America/Denver" "America/Denver" "America/Denver"  "America/Denver" "America/Chicago" "America/Chicago"  "America/Chicago" "America/Chicago" "America/Chicago"  "America/Nipigon" "America/Nipigon" "America/Nipigon"  "America/Iqaluit" "America/Iqaluit" "America/Iqaluit"
Additional information is available by specifying
allData = TRUE:
# Additional fields names(SimpleTimezones)  "timezone" "UTC_offset" "UTC_DST_offset" "countryCode"  "longitude" "latitude" "status" "notes"  "polygonID" getTimezone(lons, lats, allData = TRUE) %>% dplyr::select(timezone, countryCode, UTC_offset) timezone countryCode UTC_offset 1 <NA> <NA> NA 2 <NA> <NA> NA 3 <NA> <NA> NA 4 <NA> <NA> NA 5 <NA> <NA> NA 6 America/Hermosillo MX -7 7 America/Denver US -7 8 America/Denver US -7 9 America/Denver US -7 10 America/Denver US -7 11 America/Chicago US -6 12 America/Chicago US -6 13 America/Chicago US -6 14 America/Chicago US -6 15 America/Chicago US -6 16 America/Nipigon CA -5 17 America/Nipigon CA -5 18 America/Nipigon CA -5 19 America/Iqaluit CA -5 20 America/Iqaluit CA -5 21 America/Iqaluit CA -5
Subset by country
Becuase every datasets is guaranteed to have a
countryCode variable, we can use this for subsetting.
# Canada only subset(SimpleTimezones, countryCode == 'CA') %>% dplyr::select(timezone, UTC_offset) timezone UTC_offset 71 America/Atikokan -5.0 77 America/Blanc-Sablon -4.0 81 America/Cambridge_Bay -7.0 90 America/Creston -7.0 94 America/Dawson -7.0 95 America/Dawson_Creek -7.0 99 America/Edmonton -7.0 102 America/Fort_Nelson -7.0 104 America/Glace_Bay -4.0 105 America/Goose_Bay -4.0 112 America/Halifax -4.0 123 America/Inuvik -7.0 124 America/Iqaluit -5.0 146 America/Moncton -4.0 152 America/Nipigon -5.0 161 America/Pangnirtung -5.0 169 America/Rainy_River -6.0 170 America/Rankin_Inlet -6.0 172 America/Regina -6.0 173 America/Resolute -6.0 182 America/St_Johns -3.5 187 America/Swift_Current -6.0 190 America/Thunder_Bay -5.0 192 America/Toronto -5.0 194 America/Vancouver -8.0 195 America/Whitehorse -7.0 196 America/Winnipeg -6.0 198 America/Yellowknife -7.0
One important feature of the package is the ability to optimize spatial searches by balancing speed and accuracy. By default, the
getTimezone() function uses the
WorldTimezones_02 dataset to return results quickly. But, if you are very concerned about getting the right timezone on either side of the Roode Beek/Rothenbach border between the The Netherlands and Germany, then you will want to use the full resolution dataset. Luckily, the function signature for
getTimezone() and the other ‘get’ functions includes a dataset parameter:
getTimezone( longitude, latitude, dataset = "SimpleTimezones", countryCodes = NULL, allData = FALSE, useBuffering = FALSE )
datasaset = WorldTimezone you can perform hyper-accurate (and hyper-slow) searches.
For timezone and country searches, we have chosen default datasets that merge detailed borders on land and smoothed, all-encompassing borders off-shore. This avoids issues with peninsulas and islands disappearing with low-resolution datasets. But many datasets attempt to follow coastlines quite closely and lose some of the finer details. When working with these datasets it is useful to specify
useBuffering = TRUE. This will make an initial pass at finding the polygon underneath each point location. Any locations that remain unassociated after the first pass will be expanded into a small circle and another pass will be performed looking for the overlap of these circles with the spatial polygons. This process is repeated with increasing radii up to 200 km.
Pre-processed datasets can be viewed and installed locally with the
installSpatialData() function. Currently available data include:
CA_AirBasins– California regional air basin boundaries
EEZCountries– Country boundaries including Exclusive Economic Zones
EPARegions– US EPA region boundaries
GACC– Geographic Area Coordination Center (GACC) boundaries
GADM– GADM administrative area boundaries
HIFLDFederalLands– US federal lands
HMSSmoke– NOAA Hazard Mapping System Smoke (HMSS) areas
HouseLegislativeDistricts– US state legislative districts, by chamber
MTBSBurnAreas– MTBS burn areas from 1984 – 2017
NaturalEarthAdm1– State/province/oblast level boundaries
NWSFireZones– NWS fire weather forecast zones
OSMTimezones– OpenStreetMap time zones
PHDs– Public Health Districts for Washington, Oregon, Idaho, and California
SimpleCountries– Simplified version of the TMWorldBorders
SimpleCountriesEEZ– Simplified version of EEZCountries
SimpleTimezones– Simplified version of WorldTimezones
TerrestrialEcoregions– Terrestrial eco-regions
TMWorldBorders– Country level boundaries
USCensus116thCongress– US congressional districts
USCensusCBSA– US Core Based Statistical Areas
USCensusCounties– US county level boundaries
USCensusStates– US state level boundaries
USCensusUrbanAreas– US urban areas
USFSRangerDistricts– US Forest Service ranger districts
USIndianLands– US tribal boundaries
WBDHU2– Watershed boundary level-2 hydrologic units
WBDHU4– Watershed boundary level-4 hydrologic units
WBDHU6– Watershed boundary level-6 hydrologic units
– Watershed boundary level-8 hydrologic units
WBDHU10 – Watershed boundary level-10 hydrologic units
WBDHU12 – Watershed boundary level-12 hydrologic units
weatherZones– NWS public weather forecast zones
WorldEEZ– Country boundaries including Exclusive Economic Zones over water
We encourage interested parties to contribute
convert~() functions for their own favorite spatial datasets. If they produce SpatialPolygonDataFrames that adhere to the package standards, we’ll include them in the next release.
